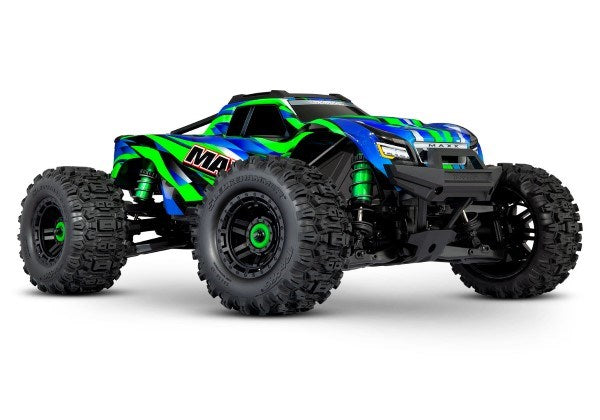

Traxxas 89086-4 Maxx with Widemaxx

by Traxxas
SKU TRX89086-4-YLW
Original price $695.00 - Original price $695.00
Original price
$695.00
$695.00 - $695.00
Current price $695.00

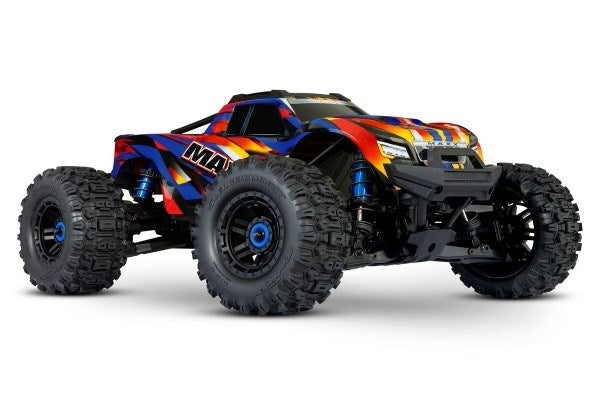

Title: Yellow

The Traxxas X-Maxx? is a giant that forever changed the face of RC monster trucks. Its radical cutting-edge design, massive size, brutal strength, and unmatched power transformed X-Maxx into the stuff of legends. The 1/10 Traxxas Maxx? expertly packages X-Maxx?s innovative design elements and jaw-dropping strength into a lighter, more compact, even more, ferocious beast. Now the newest Maxx is even bigger, with a longer wheelbase, beefier Sledgehammer? tires, and that incredible WideMaxx? stance for even more intense action. Let the fun begin!


What?s In The Box:

  • Maxx, Ready-To-Race? model with Traxxas 540XL brushless motor
  • VXL-4s waterproof electronic speed control with integrated telemetry
  • Quick Start Guide
  • TQi? 2.4GHz radio system
  • High quality maintenance tools


What You?ll Need:

  • LiPo Battery

    Traxxas recommends a 4-cell 14.8V Power Cell LiPo battery for maximum performance. A 3-cell 11.1V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported.

  • LiPo Balance Charger with iD?

    Traxxas EZ-Peak Live 4s-capable charger is recommended for easy and fast charging performance (model #2971).

  • AA Alkaline Batteries

    Four AA alkaline batteries for the transmitter.


Specs:

Length: 22.50 inches (572mm)
Front Track: 15.95 inches (405mm)
Rear Track: 15.95 inches (405mm)
Ground Clearance (lowest skid): 1.90 inches (49mm)
Ground Clearance (center skid): 2.6 inches (67mm)
Weight: 10.40 lbs (4.7kg)
Height (ride): 9.12 inches (232mm)
Wheelbase: 13.85 inches (352mm)
Shock Length: 4.90 inches (124mm)
Tire Diameter: 5.64 inches (143mm)
Wheel Diameter: 2.8 / 3.6 inches (70 / 92mm)
Speed Control: Velineon VXL-4s
Motor (electric): 540XL (2400 kV)
Transmission: Single-Speed
Overall Drive Ratio: 12.37 (23/50 motor pinion and spur gear)
Differential Type: Sealed, hardened steel bevel, limited slip
Gear Pitch: Module 1.0
Chassis Structure/Material: Composite Modular Tub
Brake Type: Electronic
Drive System: Shaft-driven 4WD
Steering: Double-shear bellcrank
Wheels & Tires: 2.8? wheels, pre-glued Sledgehammer? Tires & foam inserts; 5.6x2.8?3.6
Radio System: 2-Channel, TQi? 2.4GHz Transmitter with TSM? receiver
Servo: Torque: 285oz-in.
Top Speed: 60+ MPH with 4S LiPo battery and optional gearing (sold separately)
Skill Level: 4
Battery Tray: 186mm L x 48mm W x 43mm H
Required Batteries: 4 ?AA? (transmitter)


Motor Specs:

Type: 2400 kv sensorless brushless
Weight: 317g (11.18oz)
Length: 3.58 inches (91mm)
Diameter: 1.41 inches (36mm)
Connector Type: Traxxas 6.5mm bullet connectors


ESC Specs:

Input Voltage: 3S?4S LiPo (11.1V ? 16.8V)
Case Size: 2.83 inches (72mm) x 2.32 inches (59mm) x 1.93 inches (49mm)
Weight: 201g (7.09oz)
BEC Voltage: 6.0 V
BEC Current Continuous: 10 A
BEC Current Peak: 20 A
Motor Connectors: Traxxas 6.5mm bullet connectors
Battery Connectors: Traxxas High-Current Connectors
Power Wire: 10-gauge Maxx Cable
Ports: RX input, auxiliary fan, Traxxas accessory port


Features List:

  • VXL-4s? Waterproof Electronic Speed Control
    • 3S?4S LiPo compatible
    • Built-in cooling fan
    • Real-time telemetry via Traxxas Link?
    • Machined heat sinks
    • 10-gauge silicone wire
    • Integrated protection circuits
    • LED status lights
    • Waterproof
  • Velineon? 540XL Brushless Motor
    • Long format brushless motor
    • 4-pole 2400 kV
    • 5mm output shaft
    • Aluminum heat sink
    • Cooling fan
  • 55+ MPH out of the box using single 4S LiPo battery (sold separately)
  • 60+ MPH with optional gearing and single 4S LiPo battery (sold separately)
  • Traxxas Stability Management?
    • Helps prevents spinouts and loss of control
    • Adjusts from off to 100% assistance from the transmitter
  • TQi? 2.4GHz High Output Radio System
    • TQi? 2.4GHz transmitter
    • Traxxas Link? enabled
    • TQi 2.4GHz 5-channel micro receiver (#6533) with fail-safe security and integrated telemetry ports
    • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models?just switch on and drive, ?model selection? is not required
    • Multi-Function knob
    • Adjustable steering and throttle percentage (dual rates)
    • Adjustable steering and throttle sensitivity (exponential)
    • Adjustable steering and throttle end points
    • High 13ms frame rate and near-zero latency for responsive control
    • Telemetry-ready 5-channel micro receiver
  • Clipless Body Mount System
    • Quick one-hand installation and removal
    • Uses pivoting rear latch mechanism
    • Eliminates body posts and clips
    • Reinforced for extra protection against tearing
  • Drivetrain
    • Full-time shaft-driven 4-wheel drive
    • Torque-Biasing Center Drive? absorbs shocks and distributes power
    • 17mm keyed wheel hex with 5mm nut
    • Sealed, silicone fluid-filled diffs with large module ring and pinion gears
    • Heavy-duty Cush Drive?
    • Extreme-duty telescoping driveshafts
    • Splined aluminum center driveshaft
  • Secure Motor Mounting System
    • Precise, fixed gear mesh adjustments
    • Motor retention separate from gear mesh
    • Full-length motor cradle

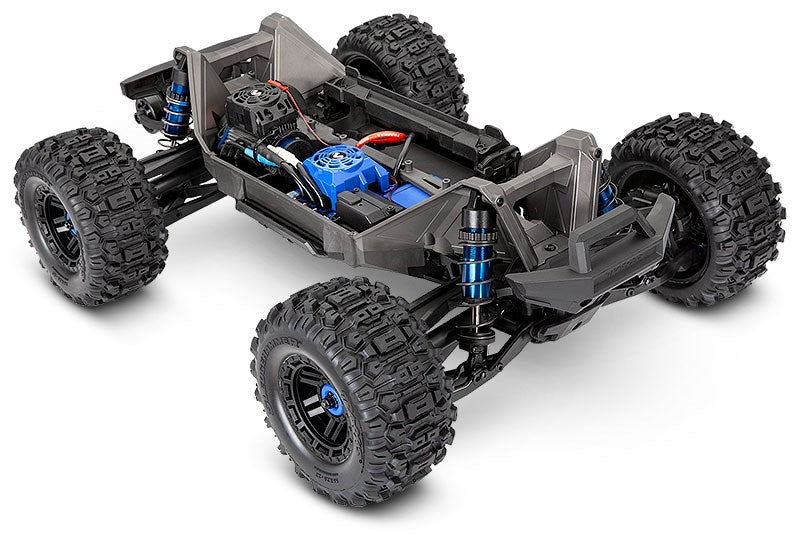

  • New Modular Composite Chassis
    • Extended modular chassis design interlocks with front and rear bulkheads
    • Absorbs and distributes impact energy
    • Easy to service and access components
    • Driveline is sealed in the chassis to keep out dirt and grit
  • Easy Battery Access
    • Extended battery tray accepts Traxxas? largest 6700mAh 4-cell LiPo battery
    • Battery is protected deep in the chassis
    • Battery hold-downs pivot for easy access
    • More secure than conventional retention systems
  • Heavy-Duty Steering Bellcranks and Servo
    • Large-scale high-output steering servo
      • 285oz-in of torque
      • 0.18 sec transit speed
    • Triangulated mounting system to fully support case
    • Heavy-duty double-shear bellcranks
  • Suspension
    • WideMaxx? double-shear suspension arms

      • 1.57? (40 mm) wider for improved handling
      • Tough new composite formula resists impact damage, even in cold weather
    • Engineered to optimize suspension travel and steering angles
    • All critical suspension points have double shear strength
    • Steel pivot balls
    • C-hub and steering block geometry maximizes steering angle
    • Fixed, high-strength camber and toe links
    • Steel upper and lower tie bars
    • Full contact sealed bearings used throughout driveline
  • GT-Maxx? Shocks
    • Machined aluminum threaded body
    • Extra-large bore and capacity
    • Large-diameter damper shaft
    • Lower seal cartridge with dual X-rings
    • Adjustable upper spring retainer
    • Plastic shock caps with pivot balls
    • Lower spring perches bolted on
  • Bumpers
    • Tough energy absorbing front and rear bumpers
    • Lower front and rear skids for impact and abrasion resistance
    • Integrated nerf bars for side impact resistance
    • Wheelie bar with integrated carry handle
  • Wheels/Tires
    • Tough 2.8? wheels with keyed 17mm hex receptor
    • Sledgehammer? extreme tires for sure-footed traction
    • 1-piece foam inserts
    • Pre-glued and ready for action
    • TSM? rated


MODEL 89086-4: Maxx: 1/10 Scale Monster Truck. Ready-To-Race? with TQi? 2.4GHz radio system with Traxxas Stability Management?, Self-Righting, and VXL-4s ESC
