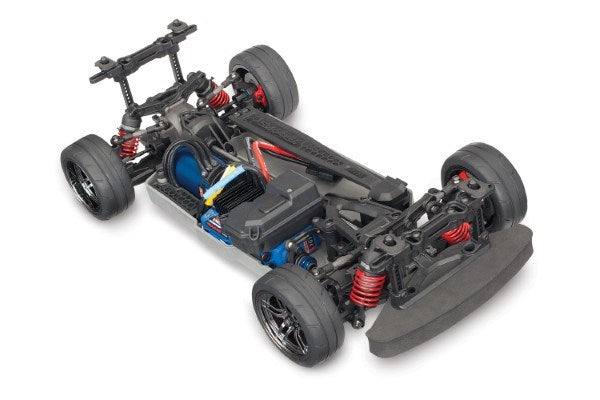

Traxxas 83076-4 - 4-Tec 2.0 VXL: 1/10 Scale AWD Chassis with TQi

by Traxxas
SKU TRX83076-4-R6
Sold out
Original price $749.00 - Original price $749.00
Original price
$749.00 - $749.00
Current price $749.00

Traxxas 83076-4 - 4-Tec 2.0 VXL: 1/10 Scale AWD Chassis with TQi

The all-new 4-Tec 2.0 VXL chassis provides the ultimate high speed driving experience. The high-tech chassis keeps weight positioned as low as possible for a crisp, responsive feel. The modular interlocking design allows easy maintenance while providing unprecedented rigidity and tight tolerances. The waterproof VXL-3s electronic speed control channels massive power to the Velineon brushless motor for four wheel tire-spinning acceleration and incredible 70+mph* top speed. A finely tuned suspension keeps the wheels glued to the pavement and Traxxas Stability Management (TSM) provides lightning-quick corrections to keep you in control. Grab the transmitter, rip full throttle, and hold on! The Traxxas 4-Tec 2.0 VXL delivers a high speed thrill ride like you've never experienced.

Choose your own body, battery, and charger (sold separately)
to create your custom ride!


  • Powered by the Velineon? brushless power system
  • Traxxas Stability ManagementTM (TSM)
  • Waterproof electronics permit driving in water, mud and snow
  • Waterproof, O-ring sealed receiver box
  • Smooth underside resists drag and snags
  • Angled front bumper improves approach angle
  • Velineon VXL-3s electronic speed control
    • LiPo, NiCad, and NiMH compatible with two-stage low-voltage detection
    • Sport Mode ? forward / brake / reverse
    • Race Mode ? forward / brake
    • Training Mode? - 50% forward / brake / 50% reverse (patented)
  • Velineon 3500 brushless motor
    • Consistent, high-power output, run after run
    • Low-maintenance, unique Traxxas design
    • Efficient, high-speed ball bearings
    • Precision-balanced rotor
  • TQi 2.4GHz transmitter
    • Compatible with optional Traxxas Link Wireless Module (#6511) for full Traxxas Link App capability Traxxas Link is designed for use with Android 4.4 and up or iOS 7.0 and later.
    • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models?just switch on and drive, "model selection" is not required
    • Multi-Function knob
    • Adjustable steering and throttle percentage (dual rates)
    • Adjustable steering and throttle sensitivity (exponential)
    • Adjustable steering and throttle end points
    • High 13ms frame rate and near-zero latency for responsive control
    • TQi 2.4GHz 5-channel micro receiver with Traxxas Stability Management (TSM) (#6533), fail-safe security and integrated telemetry ports
  • High-torque waterproof Traxxas #2075 steering servo
  • Anodized blue aluminum servo saver integrated into servo horn
  • High steering angle option
  • Fixed gear with 11 different gearing positions
  • Molded wire retainer keeps motor wires secure
  • Adjustable body mounts for custom 200 mm bodies
  • Sealed, silicone-filled differentials
  • Low center of gravity (Low CG) Chassis
  • Fully adjustable oil-filled Ultra Shocks? with X-ring technology
  • Red powder coated shock springs feature a responsive spring rate
  • Adjustable battery hold down
  • Full-time shaft driven 4-wheel drive
  • One piece steel driveshaft
  • Adjustable steel turnbuckles and steering links
  • Rubber-sealed ball bearings
  • Black chrome wheels with lug nut detail
  • VXL-rated high-performance Response tires
  • Replica brake discs incorporate standard 12 mm wheel hexes
  • Backed by unparalleled Traxxas support and parts availability

Length:   14.94 inches (379 mm)
Front Track:   7.7 inches (196 mm)
Rear Track:   7.9 inches (200 mm)
Center Ground
  0.3 inches (9 mm)
Weight:   50.88 ounces (1.44 kg)
Height (overall):   5.07 inches (129 mm)
Wheelbase:   10.1 inches (256 mm)
Shock Length:   Short (front and rear)
Tire Diameter:   2.6 inches (66 mm)
Tire Width (front):   1.0 inch (26 mm)
Tire Width (rear):   1.2 inches (30 mm)
Wheel Diameter:   1.9 inches (48 mm)
Speed Control Type:   VXL-3s? Electronic Speed Control
Motor (electric):   Velineon? 3500 brushless
Overall Drive Ratio:   6.87
Differential Type:   Hardened steel bevel, sealed, limited slip
Gear Pitch:   48
  Molded tub / Nylon composite
Drive System:   Shaft-driven, direct drive 4WD
Steering:   Dual-bellcrank
Radio System:   TQi? 2.4GHz radio with TSM? receiver
Skill Level:   3
Top Speed:   70+mph*
Battery Tray:   158 mm long / 46 mm wide / 23 or 26 mm high
Required Items
(Sold Separately):
  4 "AA" batteries (for transmitter), charger,
6 or 7-cell NiMH or 2 or 3-cell LiPo battery

Input Voltage:   NiMH 4-9 Cells (4.8 to 10.8 Volts DC);
LiPo 2-3 Cells (7.4 to 11.1 Volts DC)
Case Size:   39 mm x 55 mm x 33 mm
Weight:   90 grams
Motor Limit (Brushless):   No motor limit
On Resistance Forward:   0.00075 Ohms
On Resistance Reverse:   0.00075 Ohms
BEC Voltage:   6.0 V
BEC Current:   2.5A
Power Wire:   12-Gauge Maxx? Cable
Input Harness Wire:   26 Gauge / 100 mm
Low Voltage Detection:   2-Stage indicators, switchable (on or off)
Thermal Protection:   2-Stage thermal shutdown
Profile selection:   Sport Mode:
    100% FWD, 100% BRAKES, 100% REV
Race Mode:
    100% FWD, 100% BRAKES, NO REV
Training Mode:*
    50% FWD, 100% BRAKES, 50% REV
Single-Button Setup:   Yes, Traxxas EZ-Set?
Battery Input Connector :   Traxxas High-Current Connector
Motor Types :   Brushless
Ports:   RX input, auxiliary fan
For full details, click here. ? *Patented

MODEL 83076-4: 4-Tec 2.0 VXL AWD Chassis, 1/10 Scale, Fully-Assembled, Waterproof, and with TQi 2.4GHz Radio System, Traxxas Stability Management (TSM), and Velineon Brushless Power System.

Required for operation:

- Battery 11.1V 5000mah Lipo: 2872X

- Battery Charger: 2970

- Body sold separately
