Tamiya 58700 RC Kit: 1/10 4WD 1990 Land Rover Defender 90 (CC-02)

by Tamiya
SKU TAM58700
Original price $413.95 - Original price $413.95
Original price
$413.95
$413.95 - $413.95
Current price $413.95

Tamiya 58700 RC Kit: 1/10 4WD 1990 Land Rover Defender 90 (CC-02)

NOTE: This is a kit and requires assembly. Some parts are sold separately- see list below.

WHAT'S INCLUDED
- Unassembled 1/10 4WD 1990 Land Rover Defender 90 (CC-02) kit
- Body decals
- 540-Size brushed motor

REQUIRED ITEMS (SOLD SEPARATELY)
- 2-Channel radio system
- ESC suitable for brushed motor
- Standard steering servo
- 7.2V NiMH battery pack and suitable charger
- Polycarbonate body paint (Tamiya PS spray recommended)
- ABS compatible paint (Tamiya TS spray recommended)
- Tools for assembly

DESCRIPTION
Land Rover Legend

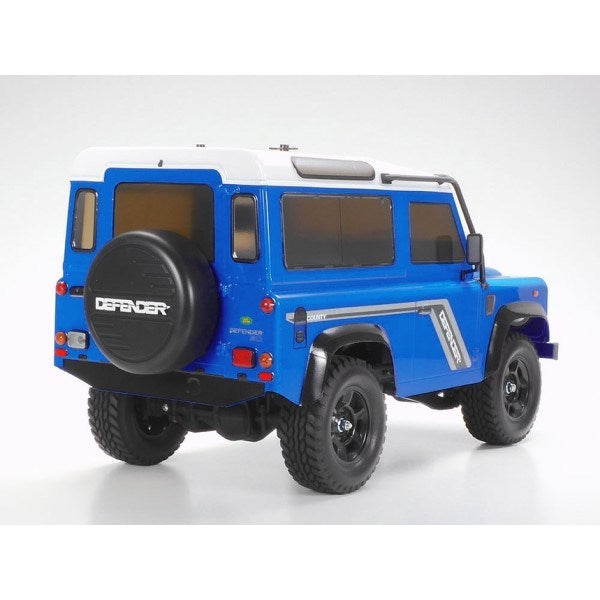

Loved by millions across the world for its superb 4WD performance and distinctive functional form, the Land Rover Defender had a long production run from 1948 until 2016. This RC model assembly kit recreates the short wheelbase Defender 90 variant from 1990, with the unmistakable form captured by a polycarbonate body featuring front and rear light cases which are compatible with separately sold LEDs. Separate molded parts are included to depict features such as the outer roll cage, front grille and spare tire cover. The CC-02 chassis is a great base, providing a sure-footed drive whether on-road or off.

CC-02 Chassis - Off Road, Evolved

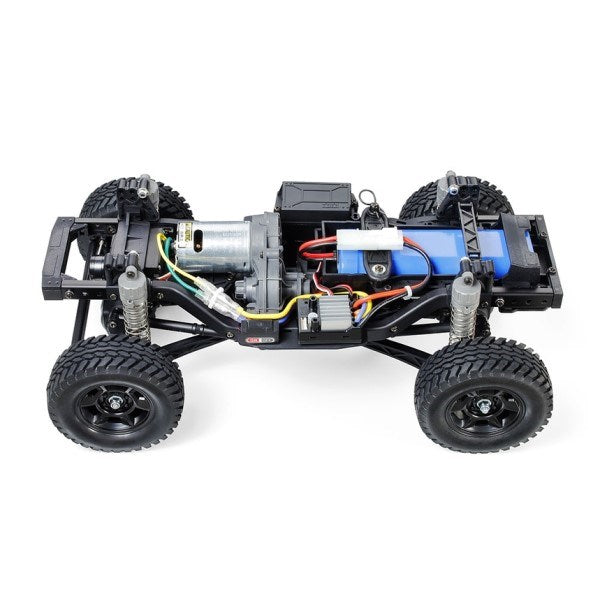

Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis' ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with black six-spoke wheels and grippy block pattern tires. In this kit, the chassis is assembled with a 242mm wheelbase.

- Polycarbonate body.
- Compatible with 5mm-diameter LEDs x2 for headlights and 5mm-diameter LEDs x6 for the rear (sold separately).
- Includes separately molded parts for grille, side mirrors, light cases and outer roll cages.
- Black ABS resin wheels are paired with semi-pneumatic all-terrain rubber tires.
- The ladder frame CC-02 chassis features superior durability and employs front/rear coil spring suspension which is great for off-road surfaces including rocky terrain.
- Includes 540-size brushed type motor.
- A wide range of hop-up option parts are available to customize the CC-02 chassis (sold separately).

ASSEMBLED DIMENSIONS
Length: 429mm
Width: 200mm
Height: 215mm
Wheelbase: 242mm

SPECIFICATIONS
Adjustable Gear Ratio: Yes
Bearings: Metal and plastic bushings
Body Material: Polycarbonate
Body Stickers: Included
Chassis Material: FRP (fiberglass reinforced plastic)
Chassis Type: CC-02
Construction Type: Assembly kit
Differential Type: Gear
Drive Type: 4WD
Motor: 540-Size brushed
Scale: 1/10
Shock Damper: CVA oil-filled
Suspension: 4-Link
Terrain Use: Multi-purpose
Tread: 160mm (front), 163mm (rear)
Tire Width/Diameter (Front and Rear): 33/90mm
Gear Ratio: 17.33:1 (using kit-standard 16T pinion)
