Tamiya 58697 RC Kit: 1/10 2WD Astute 2022 (TD2)

by Tamiya
SKU TAM58697
Original price $579.95 - Original price $1,120.95
Original price
$579.95
$579.95 - $1,120.95
Current price $579.95
Title: Kit Only

Tamiya 58697 RC Kit: 1/10 2WD Astute 2022 (TD2)

NOTE: This is a kit and requires assembly. Some parts are sold separately- see list below.

WHAT'S INCLUDED
- Unassembled 1/10 2WD Astute 2022 (TD2) kit
- Body decals

REQUIRED ITEMS (SOLD SEPARATELY)
- 2-Channel radio system
- low profile steering servo
- 540-Size brushed motor and ESC
- 7.2V NiMH battery pack and suitable charger
- Polycarbonate body paint (Tamiya PS spray recommended)
- ABS compatible paint (Tamiya TS spray recommended)
- Tools for assembly

DESCRIPTION
Truly Awesome!

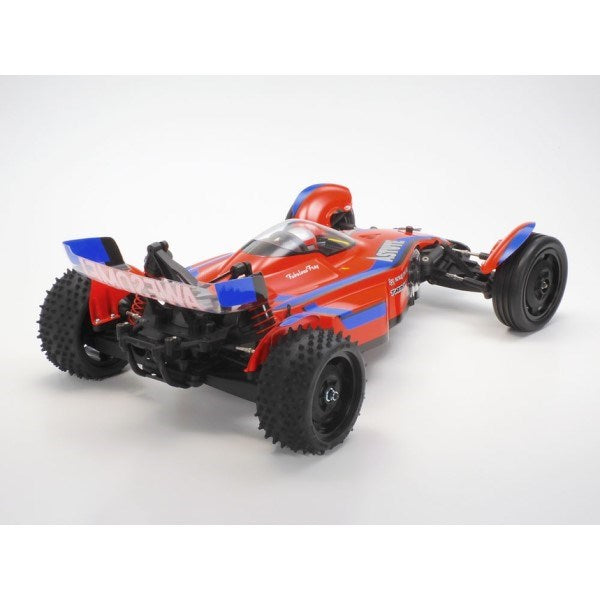

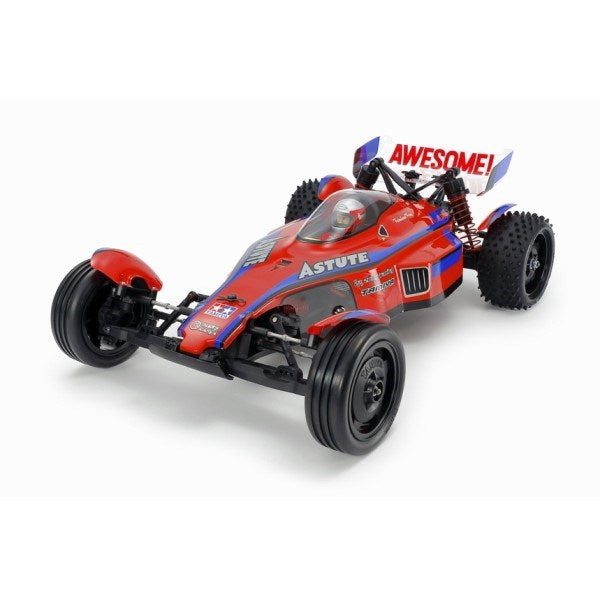

This 2WD RC off-road assembly kit buggy inherits its name from the 1980s Tamiya R/C rear-wheel drive model "Astute." The low-profile, sleek body is designed by Kota Nezu of znug design. The model features a driver figure in the cockpit and individual front/rear small fenders. Two types (high/low) of wing stays are included to adjust downforce. Based on a monocoque frame chassis with midship motor and battery pack position toward the rear, the Astute 2022 utilizes front ribbed and rear square spike tires.

TD2 - Superbly Balanced RWD

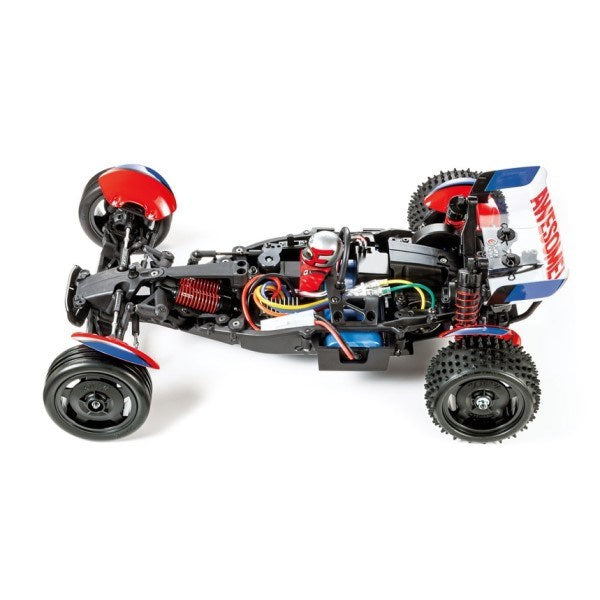

The TD2 is a rear-wheel drive buggy chassis which employs front inboard suspension for slim, low-profile form, and a monocoque frame with optimum RC equipment layout. It features a midship transverse motor and transverse battery pack positioned to the rear. The sealed gearbox has a built-in ball differential to limit slip and 4-wheel independent double wishbone suspension utilizes CVA oil dampers. Turnbuckle shafts for use as upper arms facilitate camber angle adjustment. Front suspension has a skid angle of 25 degrees and angled dampers for smooth performance. Ribbed front and rear square spike tires facilitate stability and great grip. Front wheels are attached by hex hubs.

- Polycarbonate body.
- Ribbed front and rear square spike tires facilitate stability and great grip. Newly designed star dish design front wheels are attached by hex hubs.
- 4-Wheel double wishbone suspension system uses CVA oil dampers for supple performance.
- Choose between high and low type wing stays to adjust the downforce set up of the buggy.
- Driver figure included for extra realism.

ASSEMBLED DIMENSIONS
Length: 387mm
Width: 246mm
Height: 125mm (with low wing stays employed)
Wheelbase: 284mm

SPECIFICATIONS
Adjustable Gear Ratio: Yes
Bearings: Includes full ball bearings
Body Material: Polycarbonate
Body Stickers: Included
Chassis Material: FRP (fiberglass reinforced plastic)
Chassis Type: TD-2
Construction Type: Assembly kit
Differential Type: Ball pressure plate
Drive Type: 2WD
Scale: 1/10
Shock Damper: CVA oil-filled
Suspension: Fully independent double wishbone
Terrain Use: Off-road
Tread: 215mm (front), 205mm (rear)
Tire Width/Diameter: 27/79mm (front), 41/82mm (rear)
Gear Ratio: 10.71:1


Combo Options:

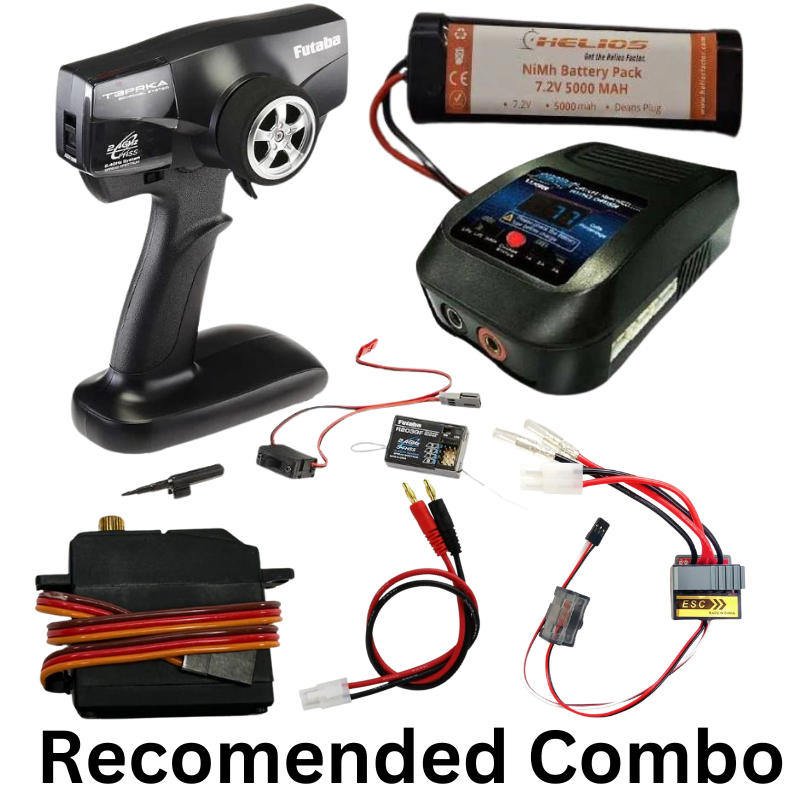

Recommended
Charger: SD4
Servo: SC-1251MG-BLACK
Battery: Helios 5000MAH
Transmitter/Receiver: Futaba 3PRKA
Speed Controller (ESC): ESC540
Cable: Helios #006

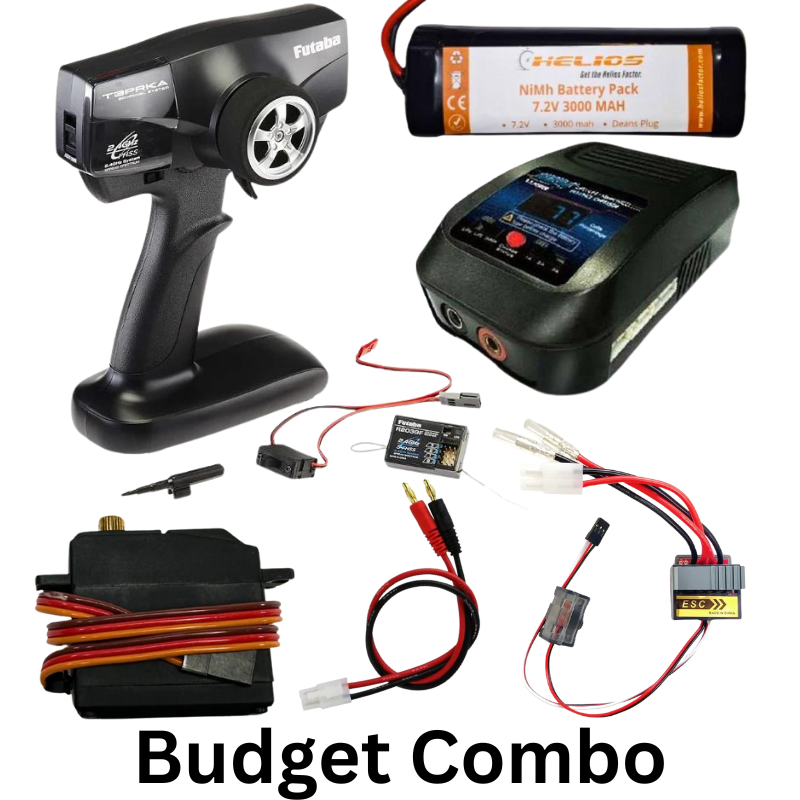

Budget
Charger: SD4
Servo: SC-1251MG-BLACK
Battery: Helios 3000MAH
Transmitter/Receiver: Futaba 3PRKA
Speed Controller (ESC): ESC540
Cable: Helios #006

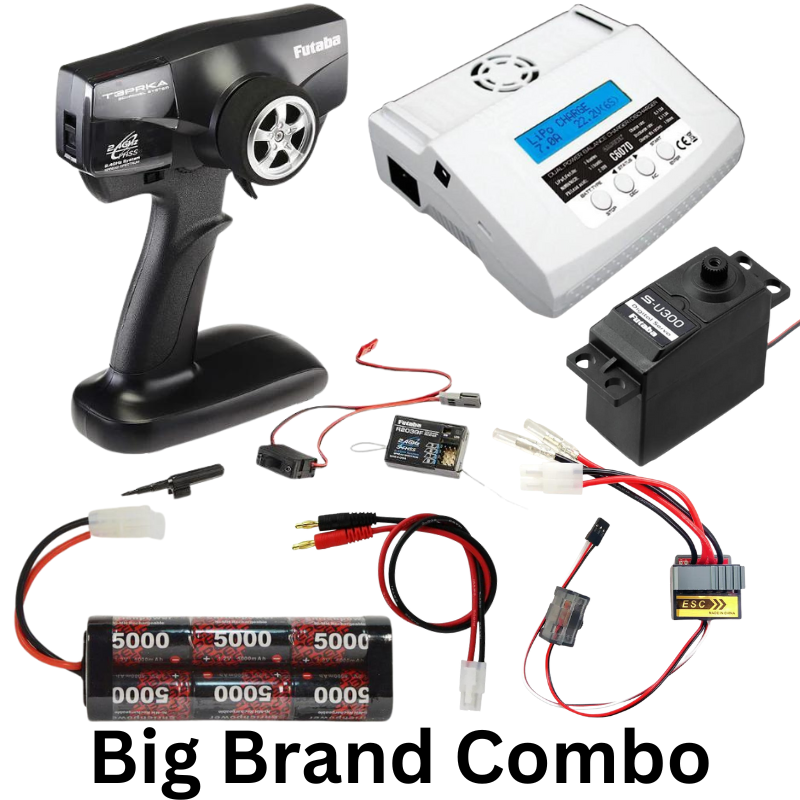

Big Branded
Charger: C607D
Servo: SC-1251MG-BLACK
Battery: Helios 5000MAH
Transmitter/Receiver: Futaba 3PRKA
Speed Controller (ESC): Tamiya TBLE-02S
Cable: Helios #006
