Tamiya 56362 RC Kit: 1/14 Volvo FH16 Globetrotter 750 8x4 Tow Truck

Heavy Duty Towing!
Tamiya’s series of ultra-realistic 1/14 scale R/C trucks has offered fun and realistic driving for the past several decades! This new kit takes that driving fun to the next level with this tow truck, which makes its living towing heavy duty vehicles such as semi-tractor trucks. It promises a completely different element of enjoyment to predecessors in the series.
The kit seen here recreates the FH16 that is marketed by Volvo, a renowned manufacture in the global commercial vehicle market. The FH Series includes a 750hp 16.1-liter turbocharged inline-6 engine FH16 Globetrotter 750 8x4 tow truck.
To the Rescue!
Volvo is a renowned actor in the global commercial vehicle market, with one of their flagship brands being the FH Series that underwent a full model change in 2012. This R/C model assembly kit recreates the 750hp engine FH16 Globetrotter 750 8x4 tow truck from that range. The model has a realistic cab and body, the former featuring a photo-etched front grille and interior details, the latter opening doors. Its fascinating towing mechanism uses plenty of metal parts and winch boom, underlift and outriggers are movable manually. The front mounted TR Mighty Tuned motor (35T) provides ample power to the two rear axles, via a three-speed transmission. Gear changes are also possible via transmitter controls, and the model can tow subjects such as 1/14 scale R/C tractor trucks.
FEATURES:
1/14 scale R/C model assembly kit. Length: 750mm, width: 195mm, height: 300mm.
Features a detailed molded plastic depiction of the cab, with photo-etched front grille and interior detail features.
This model’s front axles feature the first twin steering system seen in the Tamiya 1/14 Truck series.
Includes metal components for excellent durability.
Install the new separately available Actuator Set (Item 56553) to control its actions via your R/C transmitter.
Ladder frame has aluminum side channels and resin cross members. Power from the front motor is delivered to the two rear axles via a propeller shaft.
A built-in differential gear on each axle enables smooth cornering.
Highly realistic suspension utilizes metal leaf springs and friction dampers.
The model enjoys easy driving thanks to the float-mounted die-cast front and reinforced resin rear axles.
Three-speed transmission allows shifting via the R/C transmitter (Note: only one gear is usable when towing).
Headlights and taillights can be lit up with separately sold LEDs, and the model is compatible with Item 56523 Tractor Truck Multi-Function Control Unit 'Euro-Style' (MFC-03).
Compatible TROP truck option parts: 56523, 56531, 56538, 56548, 56549, 56550, 56551, 56553.
REQUIRED FOR OPERATION (Not Included):
4-ch Minimum RC Transmitter and Receiver system
Electronic Speed Controller OR MFC-03 Truck Unit
2 x Standard size servos.
7.2V NiMH battery
Battery Charger: Compatible with selected battery
Tamiya TS and acrylic paints
Optional Extras for Ultra Realism
Item 56553 Electric Actuator Set for 1/14 Scale R/C Tow Truck
This separately sold set allows raising of the winch boom and underlift via R/C controls. It uses a precision geared motor and spindle cylinder, plus the ACU-02 unit, and also features a toggle switch for manual control.
Item 56523 Tractor Truck Multi-Function Control Unit MFC-03
Tamiya Multi-Function Control Units (sold separately) offer light, sound, and vibration operation to accompany your R/C truck experience. Engine sounds have been digitally recorded from actual trucks, and together with air horn, gear shifting, and many other realistic sounds, give you the feeling that you are driving the real thing! Headlights, brake lights, fog lamp, hazard lights and turn signal operations are also at your fingertips.
The massive, stately form of this tow truck is captured with exceptional realism. You won't be able to wait to start towing!
Stainless steel photo-etched front grille parts add to the authenticity. Separately sold LEDs can be used to light the model up.
Visor and roof lights are metal plated components for that extra touch. Escape hatch, antenna and so on are recreated in style.
Both front axles are steered on this model, with a single servo used to turn the wheels. Wheels turn realistically at different angles

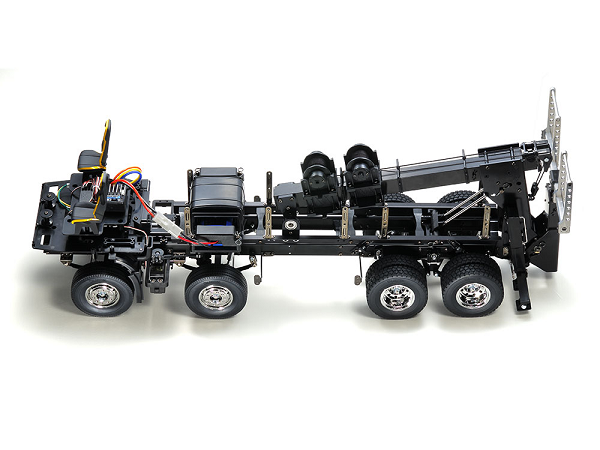

A look here at the base ladder frame chassis, which is a sturdy affair composed of aluminum side channels and resin cross members.
The body of the truck is adorned with a light bar that is constructed using a clear orange case and can be lit up with separately sold LEDs.
This is a close-up upon the winch boom, which features dual winches and cables depicted using 5 meters of string provided in the kit.
Boom length and angle can be adjusted, the former up to an impressive 586mm long. The latter gives three different angles.

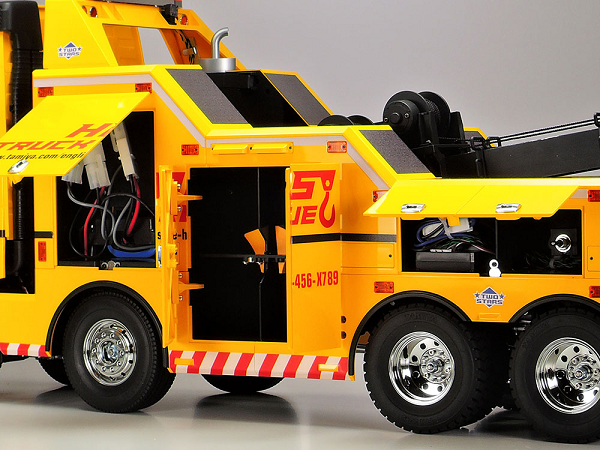

Opening doors on the body give a realistic look, and also allow access to install separately sold MFC and Actuator units.
This is a close-up on the rear suspension, where a trunnion setup is employed using metal leaf springs and friction dampers.
TECHNICAL SPECIFICATIONS:
Length: 732mm
Width: 199mm
Height: 309mm
Weight (with R/C equipment and battery pack): Approx. 5.9kg Wheelbase: 155 + 245 + 103mm ●Tread: 155mm (Front), 138mm (Rear, Double Tire) ●Chassis: Aluminum & Polycarbonate Resin Ladder Frame ●Suspension: Front/Rear Leaf Springs ●Caster Angle: 0° (Front & Rear) ●Camber
Angle: 0° (Front & Rear)
Toe Angle: 0° (Front & Rear)
Dampers: Aluminum Dummy Dampers
Drivetrain: Rear Double Axle Drive
Transmission: 3-gear transmission (shifts operated via transmitter)
Gear Ratio: (1st Gear) 32.49:1, (2nd Gear) 17.76:1, (3rd Gear) 10.66:1
Diff. Gear: 3-bevel differentials
Motor: TR Mighty-Tuned (35T)
Tire Width/Diameter: 30mm/85mm (Front), 22mm/84mm (Rear)
