Tamiya 47390 AVANTE BLACK SPECIAL

by Tamiya
SKU TAM47390
Original price $923.95 - Original price $923.95
Original price
$923.95
$923.95 - $923.95
Current price $923.95
Dispatch timeframe:
loading..

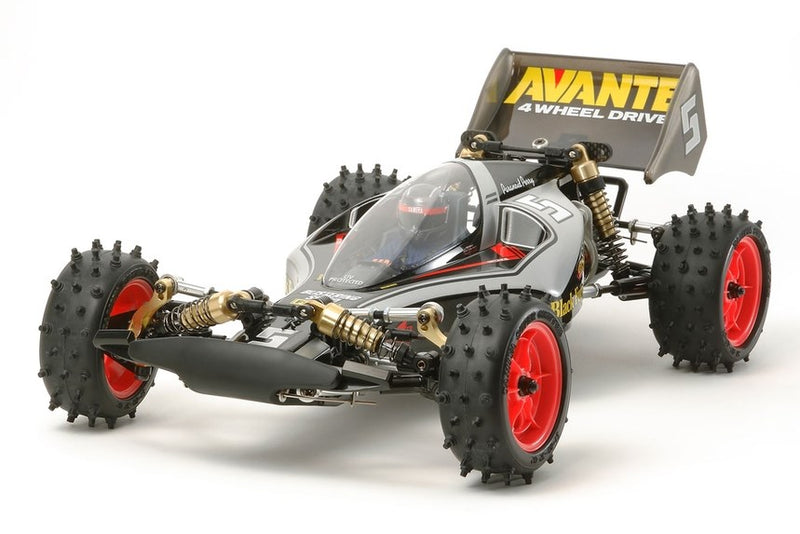

Tamiya 1/10 Avante 2011 Black Special Edition 4WD RC Buggy Race Kit
This is a Limited-Edition Black Special release of the Avante 2011 edition, which was originally released to commemorate the 35th anniversary of Tamiya R/C car products.
About the Avante:

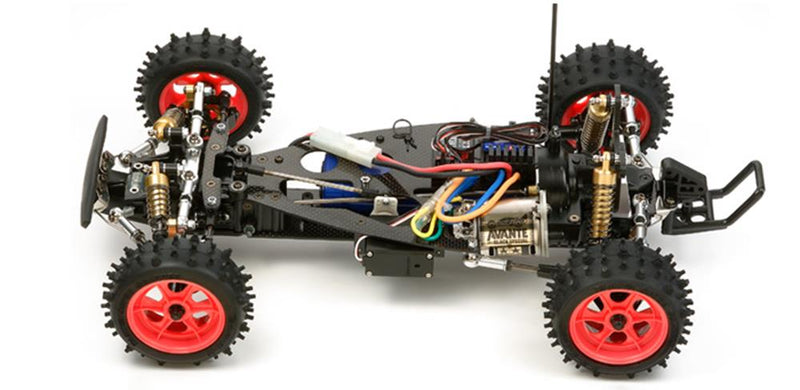

The machine features a unique shaft-driven 4WD system which was taken from Tamiya?s first 4WD R/C buggy, the Hotshot. It features a highly sophisticated design including an FRP double-deck chassis layout, longitudinal motor & battery positions, and a formula-type body with chassis fairing. It is equipped with innovative components such as a compact gearbox with 3 small planetary gears, a center diff to increase stability, a fully adjustable suspension, and cam-lock wheel caps.
The modern specification of the car has a few updates, such as universal drive-shafts and machined aluminum uprights, which gives this version increased durability and performance over the original.
Features:
Chassis:
0.08" (2mm) thick carbon fiber, double deck configuration
Drive:
Four wheel shaft with pin-secured wheel axles
Body:
unpainted Polycarbonate body with wing and chassis fairing, trimmed.
Motor:
25 turn brushed, 540 size
Shocks:
Oil-filled with gold colored cylinders and top caps
Shock Stays:
0.14" (3.5mm) thick carbon fiber
Suspension:
Front and rear multi-link double wishbone, adjustable metal arms with radius arm protectors and rear anti-roll bar,
Differentials:
Front and rear planetary, center ball diff
Tires:
High-grip pin spike with foam inserts
Wheels:
Front, 1" (25.4mm) wide, 2.2" (57mm) diameter Rear, 1.4" (35.5mm) wide, 2.2" (57mm) diameter fluorescent pink in color
Caster:
Adjustable caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis
Steering:
Racing steering set with a 2mm thick carbon fiber plate and 5x8mm ball bearings
Includes
Tamiya Limited Edition Black Special Avante 2011Off-Road Buggy Kit
25T motor
oil-filled shocks
22 tooth pinion
wheels spike tires with inserts
body
decal sheet
instruction manual
Needed to Complete
2 Channel Radio and Receiver.
Standard Size Servo for steering
ESC
7.2V NiMH Battery with standard Tamiya connector
Charger for Battery
Paint and Building equipment
Specs:
Vehicle;
Length: 16.5" (420mm)
Width: 9.4" (240mm)
Height: 4.5" (140mm)
Wheelbase: 10.2" (260mm)
Tread: 7.9" (200mm) distance from wheel centers, left to right
Gear Ratio: 1:8.33
Minimum Ground Clearance: 1.6" (40mm)
Weight: 2.9lbs (1300g)
Body:
Length: 13" (330mm)
Width: 5.9" (150mm)
Height: 2.4" (61mm)
