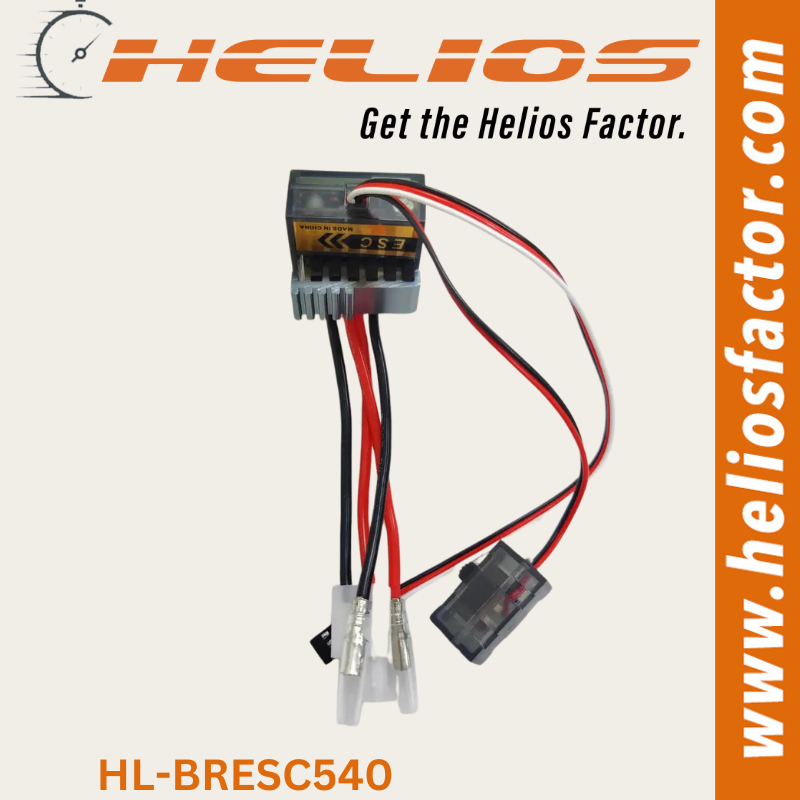

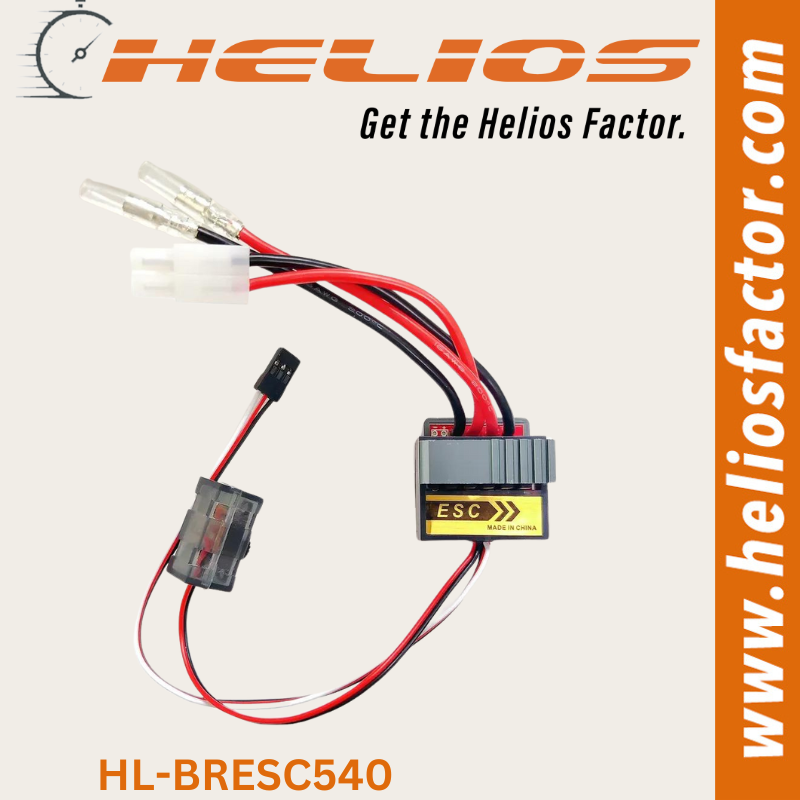

Helios - Brushed ESC for 540 Motor ( Not for LIPO )

Helios Brushed Electronic Speed Controller 540 Motor

DESCRIPTION
Generic ESC supplied for use in Tamiya RC kits or similar vehicles.

SPECIFICATIONS
Max. Continuous Current (FET Spec): Forward 60A
Output: Forward 100%, reverse 50%
Input Voltage: 6.6 - 7.2V Nimh or LiFE Battery NOT for 2 cell LiPO
Compatible Motor(s): Electric brushed motor for RC cars (Sport Tuned or more than 25 turns)
Drive Frequency: 1kHz
Output Voltage for Receiver: 6V
Dimensions: 39.4 x 36.5 x 15.0mm
Weight: 44.5g
