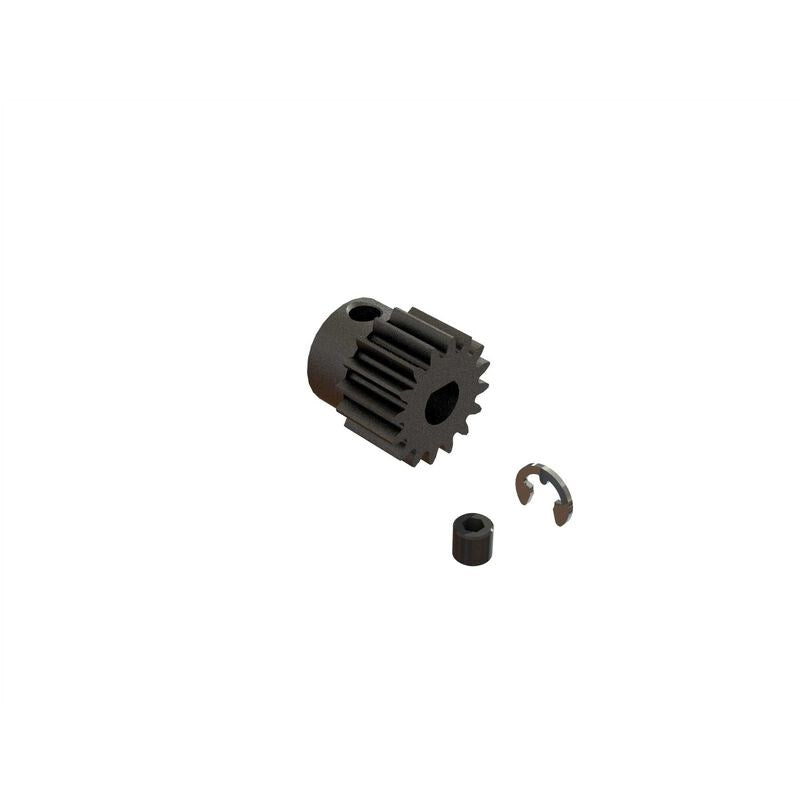

ARRMA 16T 0.8Mod Safe-D5 RC Pinion Gear - ARA310999

The ARRMA ARA310999 is a 16-tooth, 0.8 module pinion gear with a Safe-D5 bore, designed as a direct-fit drivetrain component for a wide range of ARRMA electric RC cars. The Safe-D5 interface uses a flat-sided bore that grips the motor shaft securely without needing a grub screw to bite into the shaft directly, helping to protect both the gear and the motor over time. If you're replacing a worn pinion or restoring a stripped drivetrain, this is the correct OEM-spec part for the compatible ARRMA models listed below.

Key Features

• 16-tooth, 0.8 module specification suits the standard gear pitch used across multiple ARRMA electric platforms
• Safe-D5 bore design provides a secure fit on the motor shaft without relying solely on a set screw biting into bare metal
• Direct OEM replacement — matches the original factory spec so no modification is needed during installation
• Compatible across a broad spread of ARRMA Typhon, Kraton, Talion, Notorious, and Infraction models

Compatible With

• ARA3505T1, ARA3505T2, ARA3505T3 (ARRMA Kraton 4x4 BLX)
• ARA3521T1, ARA3521T2, ARA3521T3 (ARRMA Talion 6S BLX)
• ARA3530T1, ARA3530T2 (ARRMA Kraton 6S BLX)
• ARA3537T1, ARA3537T2, ARA3537T3 (ARRMA Notorious 6S BLX)
• ARA4302V4T1, ARA4302V4T2, ARA4302V4T3 (ARRMA Typhon 3S BLX V4)
• ARA4303V4T1, ARA4303V4T2, ARA4303V4T3 (ARRMA Kraton 3S BLX V4)
• ARA4305V4T1, ARA4305V4T2, ARA4305V4T3 (ARRMA Granite 3S BLX V4)
• ARA4306V4T1, ARA4306V4T2, ARA4306V4T3, ARA4306V4T4 (ARRMA Senton 3S BLX V4)
• ARA4312V4T1, ARA4312V4T2, ARA4312V4T3 (ARRMA Outcast 4S BLX V4)
• ARA4315V4T1, ARA4315V4T2, ARA4315V4T3 (ARRMA Kraton 4S BLX V4)
• ARA4404T1, ARA4404T2 (ARRMA Infraction 6S BLX)
• ARA4408V2T3, ARA4408V2T4 (ARRMA Felony 6S BLX V2)
• ARA4410V2T3, ARA4410V2T4 (ARRMA Infraction 6S BLX V2)

What's Included

• 1x ARRMA 16T 0.8Mod Safe-D5 Pinion Gear (ARA310999)
