Traxxas 92076-4 - 2021 Ford Bronco: TRX-4 1/10 RTR 4x4 Scale and Trail Crawler

by Traxxas
SKU TRX92076-4-WHT
Original price $1,049.00 - Original price $1,049.00
Original price
$1,049.00
$1,049.00 - $1,049.00
Current price $1,049.00
Dispatch timeframe:
loading..
Title: White

Traxxas 92076-4 - 2021 Ford Bronco: TRX-4 1/10 RTR 4x4 Scale and Trail Crawler

The legend is back. After 25 years, the Bronco has returned as Ford?s top-performing 4X4 and America?s most sought-after SUV. Traxxas has captured the eagerly-anticipated Bronco in exacting detail with all the capability and versatility of the award-winning TRX-4. The Traxxas Bronco combines Ford-approved realism and class-leading performance for exciting off-road adventure no matter where the trail takes you.

WHAT'S IN THE BOX
- TRX-4, Ready-To-Race Model
- XL-5 HV Waterproof Electronic Speed Control (Installed)
- Titan 21T Reverse Rotation Motor (Installed)
- TQi 2.4GHz Radio System with Cruise Control (Installed)
- High Quality Maintenance Tools

WHAT YOU'LL NEED (SOLD SEPARATELY)
- Battery Pack: NiMH (4?7 cell) or LiPo (2S?3S) Battery equipped with a Traxxas High Current Connector
- Charger: Traxxas EZ-Peak Live Charger (model #2971) recommended
- 4 x AA Alkaline Batteries for the Transmitter

Batteries & Charger are not included, these are the compatible batteries and chargers:

Compatible Lipo Batteries:

  • Traxxas 2820X - 2200mAh 2S 7.4V 2200mAh Lipo w/iD Connector
  • Traxxas 2823X - 1400mAh 11.1V 3-Cell 25C LiPo Battery
  • Traxxas 2842X 5000mAh 7.4v 2-Cell 25C LiPo Battery
  • Traxxas 2843X - 5800mAh 7.4v 2-Cell 25C LiPo Battery
  • Traxxas 2844R - 5200mAh 7.4v 2-cell 35C LiPo Battery
  • Traxxas 2849X - 4000mah 11.1v 3-Cell 25C LiPO Battery w/ID
  • Traxxas 2869X - 7600Mah 7.4V 2-Cell 25C Lipo Battery
  • Traxxas 2872X - 5000mAh 11.1V 3-Cell 25C LiPo Battery
  • Helios 11.1V 3S 5200mAh LiPo with Traxxas Plug

Compatible Nimh Batteries:

  • Traxxas 2923X - Battery, Power Cell, 3000mAh (NiMH, 7-C flat, 8.4V)
  • Traxxas 2940X - Battery, Series 3 Power Cell, 3300Mah (Nimh, 7-C Flat, 8.4V)
  • Traxxas 2950X - Series 4 NiMH 7-Cell 4200mAh Flat w/iD Conn
  • Traxxas 2960X - Series 5 NiMH 7-Cell 5000mAh Battery Flat w/iD Conn

Compatible Chargers:

  • Traxxas 2970 - Ez-Peak Plus 4-Amp Nimh/Lipo Fast Charger With Id Auto
  • Traxxas 2971 - EZ-Peak Live 100W NiMH/LiPo charger (2971A)
  • Traxxas 2972 - Charger, EZ-Peak Dual, 100W, NiMH/LiPo with iD Auto Battery Identification
  • Traxxas 2973 EZ-Peak Live Multi-Chemistry Battery Charger w/Auto iD (4S/26A/200W)
  • Traxxas 2975 - Charger, DC, 4 amp (6 - 7 cell, 7.2 - 8.4 volt, NiMH)
  • Traxxas 2981 - EZ-Peak Plus 4s Charger

Completer Packs:

  • Traxxas 2983 - 8.4v 3000mah (long) Battery/Charger Completer Pack
  • Traxxas 2991 - 2 of 2s 7600mah Battery/Charger Completer Pack, Includes Ez Peak Dual Charger X 1 And 2-Cell 7600 Mah Lipo Batteries X 2
  • Traxxas 2992 - 2s Battery/Charger Completer Pack (Includes #2970 Id Charger (1), #2843X 5800Mah 7.4V 2-Cell 25C Lipo Battery (1))
  • Traxxas 2994 - 3s 4000mah Battery/charger completer pack (includes #2970 iD charger (1), #2849X 4000mAh 11.1v 3-Cell 25C LiPo Battery (1))

NB: Some batteries may require a battery expansion kit to fit properly.


OVERVIEW
AN OFF-ROAD LEGEND RETURNS
The legend is back. After 25 years, the Bronco has returned as Ford?s top-performing 4X4 and America?s most sought-after SUV. Traxxas has captured the eagerly-anticipated Bronco in exacting detail with all the capability and versatility of the award-winning TRX-4. The Traxxas Bronco combines Ford-approved realism and class-leading performance for exciting off-road adventure no matter where the trail takes you.


Vehicle Specs:

Length (overall): 22.98 inches (584mm)
Length (chassis): 21.59 inches (549mm)
Front Track: 9.78 inches (249mm)
Rear Track: 9.78 inches (249mm)
Ground Clearance: 3.14 inches (80mm)
Weight: 6.42lb (2.91kg)
Height: 9.4 inches (239mm)
Wheelbase: 12.8 inches (324mm)
Front Shock Length: 3.54 inches (90mm)
Rear Shock Length: 3.54 inches (90mm)
Front Wheels: 1.9 x 1.02 inches (49 x 26mm)
Rear Wheels: 1.9 x 1.02 inches (49 x 26mm)
Front Tires: 4.64 x 1.89 inches (118 x 48mm)
Rear Tires: 4.64 x 1.89 inches (118 x 48mm)
Approach Angle: 52?
Departure Angle: 49?
Breakover Angle: 58?
Hex Size: 12mm
Speed Control: XL-5 HV
Motor (electric): 21T Reverse Rotation
Transmission: 2-speed Hi-Lo, Remote Shifting
Gear Pitch: 32P
Differential Type: 4 Gear, Remote Locking
Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic ?Hill Hold?
Drive System: Shaft Driven 4WD
Steering: Chassis Mounted Servo
Servo: 2075X Metal Gear
Transmitter: TQi? 2.4 GHz 4-Channel Transmitter
Receiver: 6533
Skill Level: 1
Battery Tray: 158.75 L x 47 W x 23/26mm H


Motor Specs:

Type: High-torque brushed motor
Size: 550
Weight: 390g (13.76oz)
Length: 3.071? (78mm) overall length, 2.25? (57mm) can length, 1.532? (38.9mm diameter)
Turns: 21T reverse rotation
Voltage: 16.8V


ESC Specs:

Input Voltage: 6?7 Cells NiMH, 2?3s LiPo
Case Size: 1.23? W x 2.18? D x 1.04? H
Weight: 2.6oz (74g)
Motor Limit: 21-turns (550 size)
On Resistance Forward: 0.004 Ohms
On Resistance Reverse: 0.004 Ohms
Peak Current - Forward: 100A
Peak Current - Reverse: 100A
Braking Current: 60A
Continuous Current: 18A
BEC Voltage: 6.0 VDC
BEC Current: 1A
Power Wire: 14 Gauge / 5?
Input Harness Wire: 26 Gauge / 14.5?
Transistor Type: MOSFET
PWM Frequency: 1700Hz
Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
Thermal Protection: Thermal Shutdown
Profile selection:
  • Sport Mode: 100% FWD, 100% brakes, 100% REV
  • Race Mode: 100% FWD, 100% brakes, no REV
  • Training Mode:* 50% FWD, 100% brakes, 50% REV
  • Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral
  • Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral
Single-button setup: Yes, Traxxas EZ-Set?
* Patented


Features List:

  • Officially Licensed 2021 Ford? Bronco Body
    • Two-tone paint with black roof and clear windows
    • LED-ready headlights and tail lights with multi-function capability
    • Scale details

      • Black molded grille with white Bronco logo
      • Replica hood cowl w/ wipers and folding mirrors
      • Replica spare tire mount
      • Replica door handles
      • Tough PVC fender flares, wheel wells, and floor pans
      • Front and rear Bronco bumpers with skid plate and replica winch
  • Clipless Body mounting
    • Clipless design for smooth body appearance
    • Rugged internal body cage for added rigidity

      • Body details mount directly to internal frame
  • Trail-tuned XL-5 HV Waterproof Electronic Speed Control
    • Fully waterproof design
    • Five drive profiles
      • Sport Mode ? forward / brake / reverse
      • Race Mode ? forward / brake / no reverse
      • Training Mode? ? 50% forward / 100% brake / 50% reverse (patented)
      • Trail Mode ? forward / brake / reverse / with trail-tuned drag brake in neutral
      • Crawl Mode ? forward / instant reverse - no neutral with 100% hill holding brake
    • Traxxas EZ-Set? one-button setup
    • Large, efficient heat sink
    • Wide voltage latitude 6?7 cell NiMH (7.2?8.4V) and 2?3s LiPo (7.4?11.1V)
    • Two stage low voltage protection (LVD)
  • Motor
    • Powerful Titan? 21T reverse rotation motor with internal cooling fan
    • Precision, preset gear mesh adjustments
    • Motor retention separate from gear mesh
  • Portal Axles
    • Increase ground clearance
    • Eliminate torque twist
    • Steel gears
    • Improve axle geometry and reduce strain on driveshafts

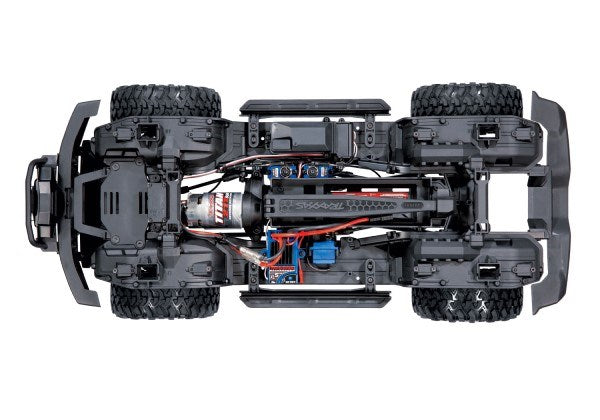

  • Rigid Steel Frame
    • 1.5mm thick steel frame rails increase torsional rigidity
    • Innovative design allows four wheelbase positions (300mm, 312mm, 324mm, 336mm)
    • Adjustable rear shock tower positions for SWB and LWB configurations
    • Rugged rock rails adjust for width
    • Wire routing clips integrated into frame rails
  • Drivetrain
    • Full-time shaft driven 4-wheel drive
    • Tough 6mm stub axles
    • Steel front CV driveshafts
    • Hardened steel rear axle shafts
    • Remote locking steel gear differentials with cable-actuation
    • Steel gear transfer case
  • Innovative Battery Compartment
    • Hinged battery strap allows quick and easy battery access
    • No pins to lose
    • Accommodates different height batteries
    • Accepts full-size long battery packs
    • Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
    • Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)
  • Transmission
    • Two speed high/low range with remote shifting
    • Dual horizontal shafts
    • Twin friction plate slipper clutch
    • Easily removed for servicing
  • Steering
    • Chassis mounted 2075X metal gear digital servo
    • Superior 45? steering angle
    • Direct steering (no servo saver)
    • Steering geometry corrected for bump steer
  • Suspension
    • Front ? 3 link with panhard
    • Rear ? Triangulated 4 link
    • Heavy-duty rod ends with steel hollow balls
    • 5mm diameter steel link rods with 4mm threaded ends
  • Aluminum GTS Shocks
    • Oil-filled coilover GTS shocks
    • Silver-anodized aluminum bodies
    • Threaded bodies with collars easily adjust ride height
    • Silky smooth damping for the toughest trails
    • O-ring cap seal and dual X-ring shaft seals
  • Wheels and Tires
    • Replica black 2021 Bronco wheels
    • Pre-mounted 1.9? Canyon Trail tires with trail-tuned foam inserts
    • Trail tuned S1 rubber compound
    • 12mm steel hex
  • Transmitter
    • TQi? 2.4GHz 4-channel transmitter
    • Traxxas Link enabled
    • Telemetry ready #6533 5-channel micro receiver with failsafe
    • Automatically stores and loads settings for up to 30 Traxxas Link enabled models
    • Exclusive Cruise Control feature for extended trail driving
    • Adjustable steering and throttle sensitivity (exponential)
    • Adjustable steering and throttle endpoints
  • Patented O-ring sealed watertight receiver box keeps the micro receiver dry
  • Sealed Ball Bearings
  • Hex hardware with rust-resistant black oxide coating


MODEL 92076-4 INFORMATION
1/10 Scale 4X4 Trail Truck with Ford Bronco Body, Fully-Assembled, Waterproof Electronics, Ready-To-Drive, with TQi 2.4GHz 4-Channel Radio System, XL-5 HV Speed Control, Hi/Low Transmission, Remote Locking Differentials, and Painted Body
