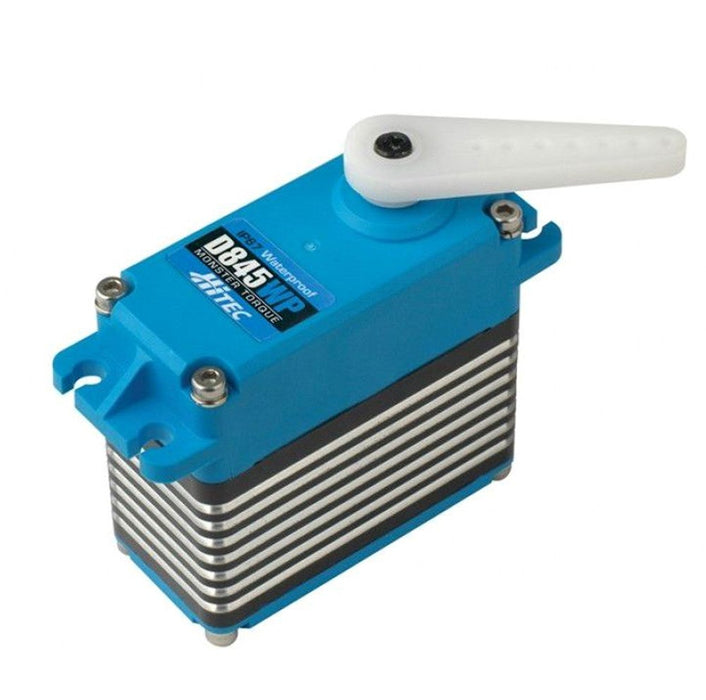

Hitec HS-D845WP MEGA Torgue 1/5 Scale Digital Programmable Water Proof. Wide Voltage 4.8V 6.0V 7.4V Torque 32.5 40.5 50.0 kg/cm Speed 0.260.21 0.17

The steel D-845WP is part of our D-Series servo line. All Hitec D-Series servos have been designed using our brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring a 15 tooth HD output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.
D845WP Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC)
4.8V ~ 6.0V ~ 7.4V
Speed (Second @ 60°)
0.26 ~ 0.21 ~ 0.17
Maximum Torque Range oz. / in.
454 ~ 566 ~ 698
Maximum Torque Range kg. / cm.
32.5 ~ 40.5 ~ 50.0
Current Draw at Idle
30 mA
No Load Operating Current Draw
1,600 mA
Stall Current Draw
10,000 mA
Dead Band Width
2 µs
Physical Specifications
Dimensions (Inches)
2.59 x 1.26 x 2.44
Dimensions (Metric)
66.0 x 32.0 x 62.0
Weight (Ounces)
8.0
Weight (Gram)
227.0
Circuit Type
32bit Programable Digital
Motor Type
5 Poles Cored Metal Brush
Gear Material
Steel
Bearing Type
Dual Ball Bearing
Output Shaft (type / Ømm)
Mega 15
Case Material
Plastic / Aluminum
Dust / Water Resistance
IP 67
Connector Gauge (AWG) / Strand Count
20 / 80
